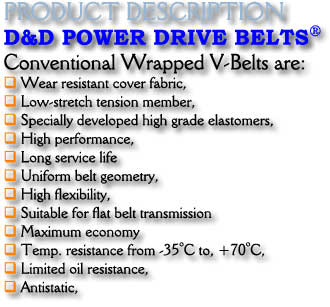

APPLICATION: D&D Conventional Wrapped V-Belts are an all-round V-Belt type with a wide range of applicatios in agricultural and industrial machinery and provides a technically and economically good design for most ordinary drives. Sophisticated production methods and high-grade materials result in a power transmission product that offers maximum operating reliability even under critical conditions





*



  • Manufacturing Range: 12" to 240 "

  • A section inside length plus 2, equals outside length

  • Top Width 1/2", Depth 5/16"



  • Manufacturing Range: 22" to 660 "

  • A section inside length plus 3, equals outside length up to 120, B220 and larger inside length plus 1,3 equals outside lenght,

  • ie. B25 is 25" inside, 28" outside,

  • ie. B240 is 240" inside,  241,3" outside,

  • Top Width 21/32", Depth 13/32"




  • Manufacturing Range: 22" to 550 "

  • C section inside length plus 4, equals outside length up to 220, C225 and larger inside length plus 2.2", equals outside length.

  • ie. C50 is 50" inside, 54" outside,

  • ie. C225 is 225" inside,  227,2" outside,

  • Top Width 7/8", Depth 17/32"




  • Manufacturing Range: 81" to 350 "

  • D section inside length plus 5, equals outside length up to 210, D220 and larger inside lenghtplus 2,7" equals outside length

  • ie. D100 is 100" inside, 105" outside,

  • ie. D240 is 240" inside,  242,7" outside,

  • Top Width 1- 1/4", Depth 3/4"




  • Manufacturing Range: 144" to 350 "

  • E section inside length plus 6, equals outside length

  • Top Width 1-1/2", Depth 29/32"

  • ie. E200 is 200" inside, 206" outside,


*ADDITIONALLY SECTION Z, 6, 8, 20 AND 25 AVAILABLE UPON REQUEST

STANDARTS of D&D Conventional wrapped V-Belts:

ISO 4184, BS 3790, DIN 2215, ANSI/RMA IP-20, ASAE S 211.4

Construction characteristics and dimensions may  be changed at any time without prior notice. The data contained herein is for information purposes only and does not enlarge, amend or imply any warranty other than provided by the manufacturer with the product.Any use of the product not in conformance with the manufacturer's instructions may be dangreous.
