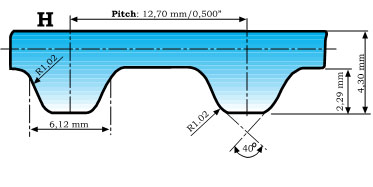

H Pitch Synchronous Belts
Width of H Pitch Synchronous Belts :
075(3/4¨)-100(1¨)-150(11/2¨)-200(2¨)-300(3¨)-400(4¨)-500(5¨)
Any custom Width available
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
180
H
457,20
18
91,44
200
H
508,00
20
101,6
210
H
533,40
21
106,68
215
H
546,10
21,5
109,22
220
H
558,80
22
111,76
225
H
571,50
22,5
114,3
230
H
584,20
23
116,84
240
H
609,60
24
121,92
250
H
635,00
25
127
255
H
647,70
25,5
129,54
260
H
660,40
26
132,08
270
H
685,80
27
137,16
280
H
711,20
28
142,24
285
H
723,90
28,5
144,78
290
H
736,60
29
147,32
300
H
762,00
30
152,4
310
H
787,40
31
157,48
315
H
800,10
31,5
160,02
320
H
812,80
32
162,56
330
H
838,20
33
167,64
340
H
863,60
34
172,72
345
H
876,30
34,5
175,26
350
H
889,00
35
177,8
360
H
914,40
36
182,88
365
H
927,10
36,5
185,42
370
H
939,80
37
187,96
375
H
952,50
37,5
190,5
380
H
965,20
38
193,04
390
H
990,60
39
198,12
395
H
1003,30
39,5
200,66
400
H
1016,00
40
203,2
405
H
1028,70
40,5
205,74
410
H
1041,40
41
208,28
420
H
1066,80
42
213,36
430
H
1092,20
43
218,44
440
H
1117,60
44
223,52
445
H
1130,30
44,5
226,06
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
460
H
1168,40
46
233,68
465
H
1181,10
46,5
236,22
470
H
1193,80
47
238,76
480
H
1219,20
48
243,84
485
H
1231,90
48,5
246,38
490
H
1244,60
49
248,92
500
H
1270,00
50
254
51
H
129,54
5,1
25,908
515
H
1308,10
51,5
261,62
520
H
1320,80
52
264,16
525
H
1333,50
52,5
266,7
530
H
1346,20
53
269,24
540
H
1371,60
54
274,32
550
H
1397,00
55
279,4
560
H
1422,40
56
284,48
570
H
1447,80
57
289,56
580
H
1473,20
58
294,64
585
H
1485,90
58,5
297,18
590
H
1498,60
59
299,72
600
H
1524,00
60
304,8
615
H
1562,10
61,5
312,42
630
H
1600,20
63
320,04
640
H
1625,60
64
325,12
645
H
1638,30
64,5
327,66
650
H
1651,00
65
330,2
660
H
1676,40
66
335,28
680
H
1727,20
68
345,44
700
H
1778,00
70
355,6
710
H
1803,40
71
360,68
720
H
1828,80
72
365,76
725
H
1841,50
72,5
368,3
730
H
1854,20
73
370,84
740
H
1879,60
74
375,92
750
H
1905,00
75
381
760
H
1930,40
76
386,08
770
H
1955,80
77
391,16
775
H
1968,50
77,5
393,7
800
H
2032,00
80
406,4
810
H
2057,40
81
411,48
820
H
2082,80
82
416,56
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
830
H
1371,60
54
274,32
840
H
2133,60
84
426,72
850
H
2159,00
85
431,8
860
H
2184,40
86
436,88
880
H
2235,20
88
447,04
890
H
2260,60
89
452,12
900
H
2286,00
90
457,2
950
H
2413,00
95
482,6
960
H
2438,40
96
487,68
980
H
2489,20
98
497,84
985
H
2501,90
98,5
500,38
1000
H
2540,00
100
508
1020
H
2590,80
102
518,16
1040
H
2641,60
104
528,32
1050
H
2667,00
105
533,4
1085
H
2755,90
108,5
551,18
1100
H
2794,00
110
558,8
1120
H
2844,80
112
568,96
1130
H
2870,20
113
574,04
1140
H
2895,60
114
579,12
1150
H
2921,00
115
584,2
1200
H
3048,00
120
609,6
1210
H
3073,40
121
614,68
1250
H
3175,00
125
635
1270
H
3225,80
127
645,16
1300
H
3302,00
130
660,4
1325
H
3365,50
132,5
673,1
1350
H
3429,00
135
685,8
1400
H
3556,00
140
711,2
1440
H
3657,60
144
731,52
1450
H
3683,00
145
736,6
1460
H
3708,40
146
741,68
1500
H
3810,00
150
762
1560
H
3962,40
156
792,48
1600
H
4064,00
160
812,8
1700
H
4318,00
170
863,6
1855
H
4711,70
185,5
942,34
2200
H
5588,00
220
1117,6
