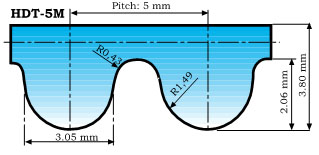

HDT 5M Pitch Synchronous Belts
Width of HDT 5M Pitch Synchronous Belts :
9mm-15mm-25mm
Any custom Width available
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
5M
120
120,00
4,72
24
5M
125
125,00
4,92
25
5M
180
180,00
7,09
36
5M
210
210,00
8,27
42
5M
215
215,00
8,46
43
5M
220
220,00
8,66
44
5M
225
225,00
8,86
45
5M
235
235,00
9,25
47
5M
240
240,00
9,45
48
5M
245
245,00
9,65
49
5M
250
250,00
9,84
50
5M
255
255,00
10,04
51
5M
260
260,00
10,24
52
5M
265
265,00
10,43
53
5M
270
270,00
10,63
54
5M
275
275,00
10,83
55
5M
280
280,00
11,02
56
5M
285
285,00
11,22
57
5M
295
295,00
11,61
59
5M
300
300,00
11,81
60
5M
305
305,00
12,01
61
5M
310
310,00
12,2
62
5M
315
315,00
12,4
63
5M
320
320,00
12,6
64
5M
325
325,00
12,8
65
5M
330
330,00
12,99
66
5M
340
340,00
13,39
68
5M
345
345,00
13,58
69
5M
350
350,00
13,78
70
5M
355
355,00
13,98
71
5M
360
360,00
14,17
72
5M
365
365,00
14,37
73
5M
370
370,00
14,57
74
5M
375
375,00
14,76
75
5M
385
385,00
15,16
77
5M
390
390,00
15,35
78
5M
395
395,00
15,55
79
5M
400
400,00
15,75
80
5M
405
405,00
15,94
81
5M
410
410,00
16,14
82
5M
415
415,00
16,34
83
5M
420
420,00
16,54
84
5M
425
425,00
16,73
85
5M
435
435,00
17,13
87
5M
440
440,00
17,32
88
5M
445
445,00
17,52
89
5M
450
450,00
17,72
90
5M
460
460,00
18,11
92
5M
465
465,00
18,31
93
5M
470
470,00
18,5
94
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
5M
475
475,00
18,7
95
5M
480
480,00
18,9
96
5M
485
485,00
19,09
97
5M
490
490,00
19,29
98
5M
500
500,00
19,69
100
5M
505
505,00
19,88
101
5M
510
510,00
20,08
102
5M
520
520,00
20,47
104
5M
525
525,00
20,67
105
5M
530
530,00
20,87
106
5M
535
535,00
21,06
107
5M
540
540,00
21,26
108
5M
545
545,00
21,46
109
5M
550
550,00
21,65
110
5M
560
560,00
22,05
112
5M
565
565,00
22,24
113
5M
570
570,00
22,44
114
5M
575
575,00
22,64
115
5M
580
580,00
22,83
116
5M
590
590,00
23,23
118
5M
595
595,00
23,43
119
5M
600
600,00
23,62
120
5M
610
610,00
24,02
122
5M
615
615,00
24,21
123
5M
620
620,00
24,41
124
5M
625
625,00
24,61
125
5M
630
630,00
24,8
126
5M
635
635,00
25
127
5M
640
640,00
25,2
128
5M
645
645,00
25,39
129
5M
650
650,00
25,59
130
5M
655
655,00
25,79
131
5M
660
660,00
25,98
132
5M
665
665,00
26,18
133
5M
670
670,00
26,38
134
5M
675
675,00
26,57
135
5M
680
680,00
26,77
136
5M
690
690,00
27,17
138
5M
695
695,00
27,36
139
5M
700
700,00
27,56
140
5M
710
710,00
27,95
142
5M
720
720,00
28,35
144
5M
725
725,00
28,54
145
5M
730
730,00
28,74
146
5M
735
735,00
28,94
147
5M
740
740,00
29,13
148
5M
745
745,00
29,33
149
5M
750
750,00
29,53
150
5M
755
755,00
29,72
151
5M
760
760,00
29,92
152
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
5M
765
765,00
30,12
153
5M
770
770,00
30,31
154
5M
775
775,00
30,51
155
5M
780
780,00
30,71
156
5M
800
800,00
31,5
160
5M
810
810,00
31,89
162
5M
815
815,00
32,09
163
5M
820
820,00
32,28
164
5M
825
825,00
32,48
165
5M
830
830,00
32,68
166
5M
835
835,00
32,87
167
5M
840
840,00
33,07
168
5M
845
845,00
33,27
169
5M
850
850,00
33,46
170
5M
860
860,00
33,86
172
5M
865
865,00
34,06
173
5M
870
870,00
34,25
174
5M
880
880,00
34,65
176
5M
890
890,00
35,04
178
5M
895
895,00
35,24
179
5M
900
900,00
35,43
180
5M
910
910,00
35,83
182
5M
920
920,00
36,22
184
5M
925
925,00
36,42
185
5M
930
930,00
36,61
186
5M
935
935,00
36,81
187
5M
940
940,00
37,01
188
5M
950
950,00
37,4
190
5M
960
960,00
37,8
192
5M
965
965,00
37,99
193
5M
975
975,00
38,39
195
5M
980
980,00
38,58
196
5M
990
990,00
38,98
198
5M
1000
1000,00
39,37
200
5M
1020
1020,00
40,16
204
5M
1025
1025,00
40,35
205
5M
1035
1035,00
40,75
207
5M
1040
1040,00
40,94
208
5M
1050
1050,00
41,34
210
5M
1060
1060,00
41,73
212
5M
1080
1080,00
42,52
216
5M
1100
1100,00
43,31
220
5M
1105
1105,00
43,5
221
5M
1115
1115,00
43,9
223
5M
1125
1125,00
44,29
225
5M
1135
1135,00
44,69
227
5M
1145
1145,00
45,08
229
5M
1150
1150,00
45,28
230
5M
1160
1160,00
45,67
232
