TIMING BELTS > HDT SYNCHRONOUS BELTS > HDT 8M Pitch Synchronous Belts
BACK

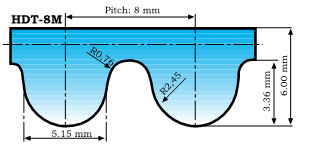

HDT 8M Pitch Synchronous Belts
Width of HDT 8M Pitch Synchronous Belts :
20mm-30mm-50mm-85mm
Any custom Width available
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
8M
288
288,00
11,34
36
8M
320
320,00
12,6
40
8M
328
328,00
12,91
41
8M
336
336,00
13,23
42
8M
344
344,00
13,54
43
8M
352
352,00
13,86
44
8M
368
368,00
14,49
46
8M
376
376,00
14,8
47
8M
384
384,00
15,12
48
8M
400
400,00
15,75
50
8M
416
416,00
16,38
52
8M
424
424,00
16,69
53
8M
440
440,00
17,32
55
8M
448
448,00
17,64
56
8M
472
472,00
18,58
59
8M
480
480,00
18,9
60
8M
488
488,00
19,21
61
8M
512
512,00
20,16
64
8M
520
520,00
20,47
65
8M
536
536,00
21,1
67
8M
560
560,00
22,05
70
8M
576
576,00
22,68
72
8M
600
600,00
23,62
75
8M
608
608,00
23,94
76
8M
624
624,00
24,57
78
8M
632
632,00
24,88
79
8M
640
640,00
25,2
80
8M
656
656,00
25,83
82
8M
672
672,00
26,46
84
8M
680
680,00
26,77
85
8M
696
696,00
27,4
87
8M
712
712,00
28,03
89
8M
720
720,00
28,35
90
8M
736
736,00
28,98
92
8M
760
760,00
29,92
95
8M
776
776,00
30,55
97
8M
784
784,00
30,87
98
8M
800
800,00
31,5
100
8M
816
816,00
32,13
102
8M
824
824,00
32,44
103
8M
832
832,00
32,76
104
8M
840
840,00
33,07
105
8M
848
848,00
33,39
106
8M
856
856,00
33,7
107
8M
864
864,00
34,02
108
8M
872
872,00
34,33
109
8M
880
880,00
34,65
110
8M
888
888,00
34,96
111
8M
896
896,00
35,28
112
8M
912
912,00
35,91
114
8M
920
920,00
36,22
115
8M
928
928,00
36,54
116
8M
936
936,00
36,85
117
8M
944
944,00
37,17
118
8M
952
952,00
37,48
119
8M
960
960,00
37,8
120
8M
968
968,00
38,11
121
8M
976
976,00
38,43
122
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
8M
984
984,00
38,74
123
8M
1000
1000,00
39,37
125
8M
1008
1008,00
39,69
126
8M
1016
1016,00
40
127
8M
1032
1032,00
40,63
129
8M
1040
1040,00
40,94
130
8M
1056
1056,00
41,57
132
8M
1064
1064,00
41,89
133
8M
1080
1080,00
42,52
135
8M
1088
1088,00
42,83
136
8M
1096
1096,00
43,15
137
8M
1104
1104,00
43,46
138
8M
1120
1120,00
44,09
140
8M
1128
1128,00
44,41
141
8M
1136
1136,00
44,72
142
8M
1144
1144,00
45,04
143
8M
1152
1152,00
45,35
144
8M
1160
1160,00
45,67
145
8M
1168
1168,00
45,98
146
8M
1176
1176,00
46,3
147
8M
1184
1184,00
46,61
148
8M
1192
1192,00
46,93
149
8M
1200
1200,00
47,24
150
8M
1208
1208,00
47,56
151
8M
1216
1216,00
47,87
152
8M
1224
1224,00
48,19
153
8M
1240
1240,00
48,82
155
8M
1248
1248,00
49,13
156
8M
1256
1256,00
49,45
157
8M
1264
1264,00
49,76
158
8M
1272
1272,00
50,08
159
8M
1280
1280,00
50,39
160
8M
1304
1304,00
51,34
163
8M
1312
1312,00
51,65
164
8M
1320
1320,00
51,97
165
8M
1328
1328,00
52,28
166
8M
1336
1336,00
52,6
167
8M
1344
1344,00
52,91
168
8M
1352
1352,00
53,23
169
8M
1360
1360,00
53,54
170
8M
1392
1392,00
54,8
174
8M
1400
1400,00
55,12
175
8M
1408
1408,00
55,43
176
8M
1416
1416,00
55,75
177
8M
1424
1424,00
56,06
178
8M
1432
1432,00
56,38
179
8M
1440
1440,00
56,69
180
8M
1456
1456,00
57,32
182
8M
1480
1480,00
58,27
185
8M
1512
1512,00
59,53
189
8M
1520
1520,00
59,84
190
8M
1552
1552,00
61,1
194
8M
1576
1576,00
62,05
197
8M
1584
1584,00
62,36
198
8M
1600
1600,00
62,99
200
8M
1608
1608,00
63,31
201
8M
1616
1616,00
63,62
202
8M
1632
1632,00
64,25
204
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
8M
1648
1648,00
64,88
206
8M
1680
1680,00
66,14
210
8M
1696
1696,00
66,77
212
8M
1728
1728,00
68,03
216
8M
1760
1760,00
69,29
220
8M
1784
1784,00
70,24
223
8M
1792
1792,00
70,55
224
8M
1800
1800,00
70,87
225
8M
1816
1816,00
71,5
227
8M
1824
1824,00
71,81
228
8M
1840
1840,00
72,44
230
8M
1856
1856,00
73,07
232
8M
1880
1880,00
74,02
235
8M
1888
1888,00
74,33
236
8M
1896
1896,00
74,65
237
8M
1904
1904,00
74,96
238
8M
1936
1936,00
76,22
242
8M
1952
1952,00
76,85
244
8M
2000
2000,00
78,74
250
8M
2032
2032,00
80
254
8M
2040
2040,00
80,31
255
8M
2048
2048,00
80,63
256
8M
2080
2080,00
81,89
260
8M
2104
2104,00
82,83
263
8M
2120
2120,00
83,46
265
8M
2160
2160,00
85,04
270
8M
2208
2208,00
86,93
276
8M
2240
2240,00
88,19
280
8M
2248
2248,00
88,5
281
8M
2272
2272,00
89,45
284
8M
2352
2352,00
92,6
294
8M
2392
2392,00
94,17
299
8M
2400
2400,00
94,49
300
8M
2480
2480,00
97,64
310
8M
2504
2504,00
98,58
313
8M
2520
2520,00
99,21
315
8M
2584
2584,00
101,73
323
8M
2600
2600,00
102,36
325
8M
2800
2800,00
110,24
350
8M
3008
3008,00
118,43
376
8M
3032
3032,00
119,37
379
8M
3048
3048,00
120
381
8M
3120
3120,00
122,83
390
8M
3168
3168,00
124,72
396
8M
3200
3200,00
125,98
400
8M
3280
3280,00
129,13
410
8M
3408
3408,00
134,17
426
8M
3480
3480,00
137,01
435
8M
3600
3600,00
141,73
450
8M
3640
3640,00
143,31
455
8M
3720
3720,00
146,46
465
8M
4000
4000,00
157,48
500
8M
4200
4200,00
165,35
525
8M
4400
4400,00
173,23
550
8M
5120
5120,00
201,57
640
