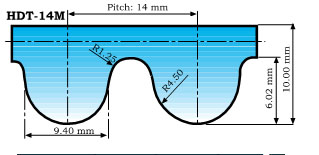

HDT 14M Pitch Synchronous Belts
Width of HDT 14M Pitch Synchronous Belts :
40mm-55mm-85mm-115mm-170mm
Any custom Width available
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
14M
826
826,00
32,52
59
14M
924
924,00
36,38
66
14M
966
966,00
38,03
69
14M
1036
1036,00
40,79
74
14M
1064
1064,00
41,89
76
14M
1092
1092,00
42,99
78
14M
1120
1120,00
44,09
80
14M
1190
1190,00
46,85
85
14M
1246
1246,00
49,06
89
14M
1260
1260,00
49,61
90
14M
1288
1288,00
50,71
92
14M
1344
1344,00
52,91
96
14M
1358
1358,00
53,46
97
14M
1400
1400,00
55,12
100
14M
1414
1414,00
55,67
101
14M
1456
1456,00
57,32
104
14M
1512
1512,00
59,53
108
14M
1540
1540,00
60,63
110
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
14M
1568
1568,00
61,73
112
14M
1610
1610,00
63,39
115
14M
1638
1638,00
64,49
117
14M
1652
1652,00
65,04
118
14M
1680
1680,00
66,14
120
14M
1736
1736,00
68,35
124
14M
1750
1750,00
68,9
125
14M
1764
1764,00
69,45
126
14M
1778
1778,00
70
127
14M
1806
1806,00
71,1
129
14M
1820
1820,00
71,65
130
14M
1848
1848,00
72,76
132
14M
1890
1890,00
74,41
135
14M
1946
1946,00
76,61
139
14M
1960
1960,00
77,17
140
14M
2002
2002,00
78,82
143
14M
2100
2100,00
82,68
150
14M
2198
2198,00
86,54
157
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
14M
2240
2240,00
88,19
160
14M
2310
2310,00
90,94
165
14M
2450
2450,00
96,46
175
14M
2506
2506,00
98,66
179
14M
2590
2590,00
101,97
185
14M
2800
2800,00
110,24
200
14M
3108
3108,00
122,36
222
14M
3150
3150,00
124,02
225
14M
3360
3360,00
132,28
240
14M
3500
3500,00
137,8
250
14M
3850
3850,00
151,57
275
14M
4004
4004,00
157,64
286
14M
4326
4326,00
170,31
309
14M
4578
4578,00
180,24
327
14M
4760
4760,00
187,4
340
14M
4956
4956,00
195,12
354
14M
5040
5040,00
198,43
360
14M
5320
5320,00
209,45
380
